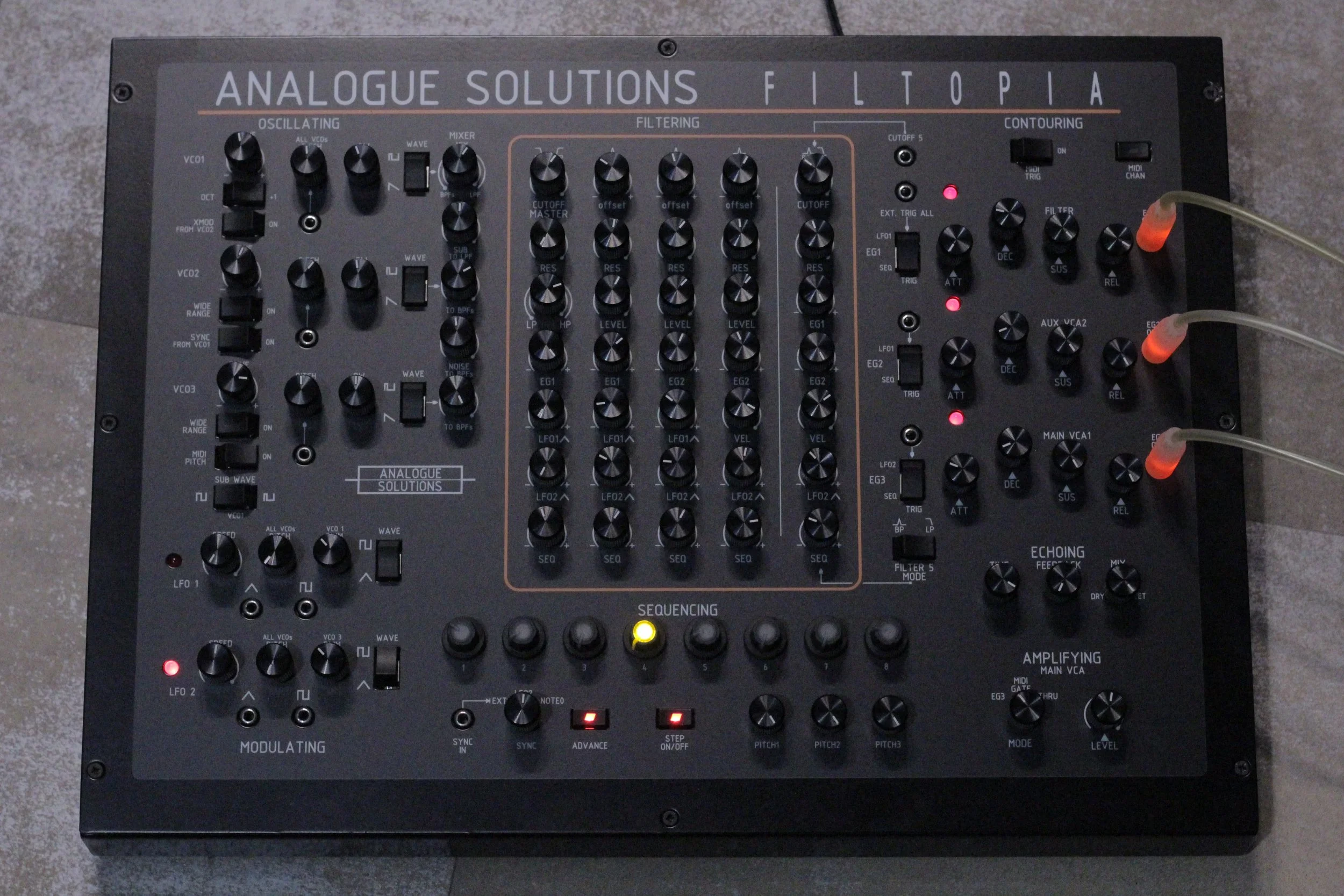

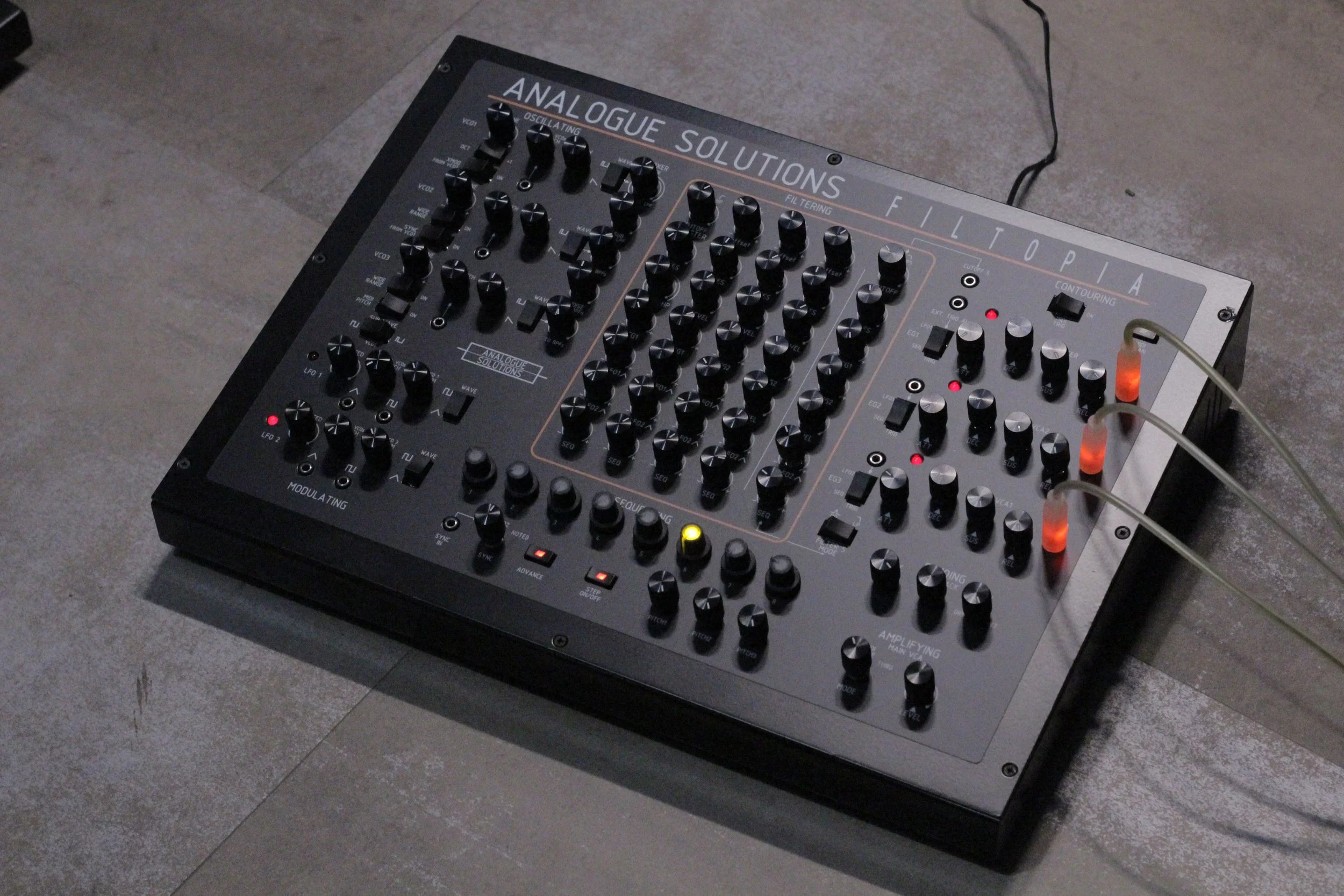

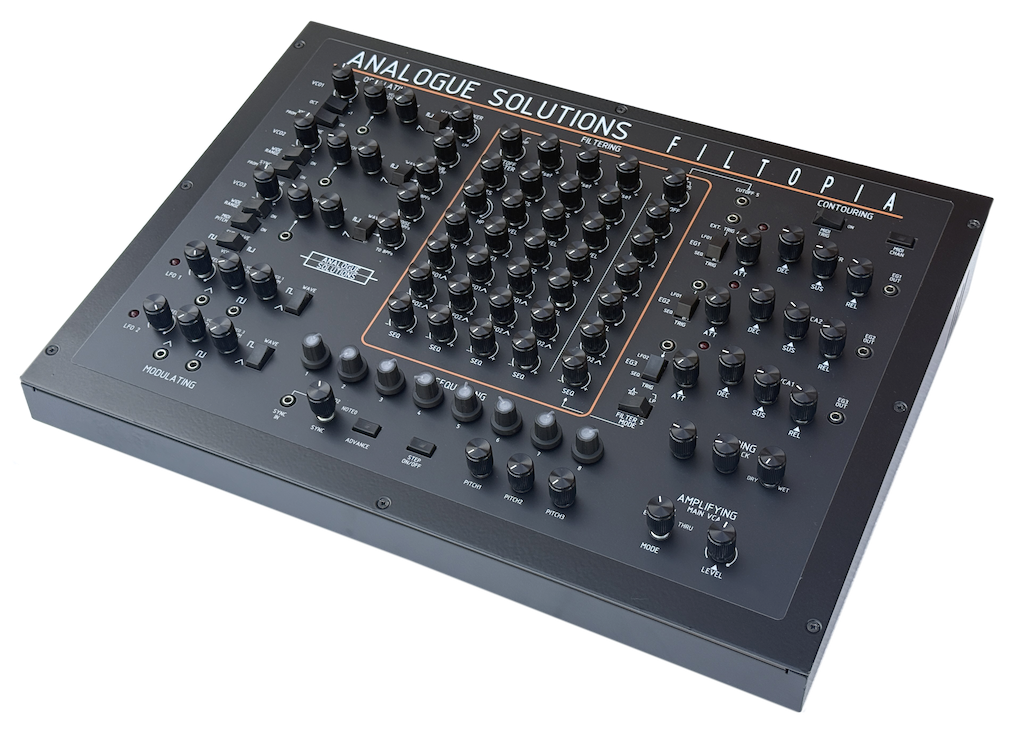

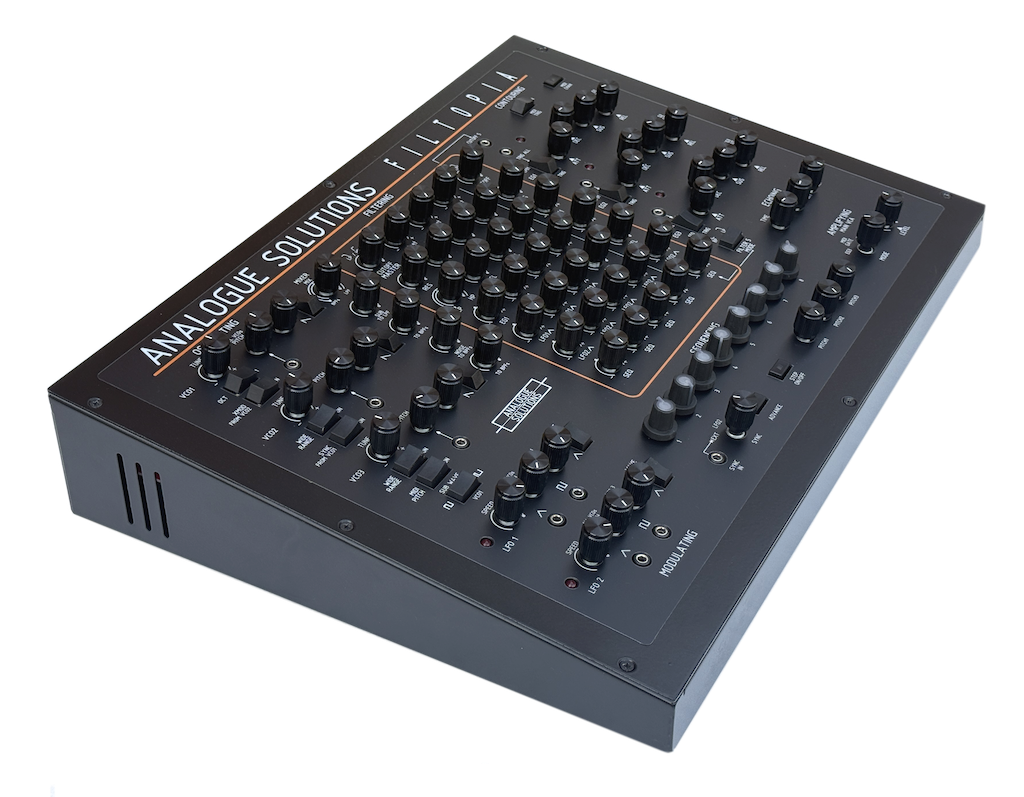

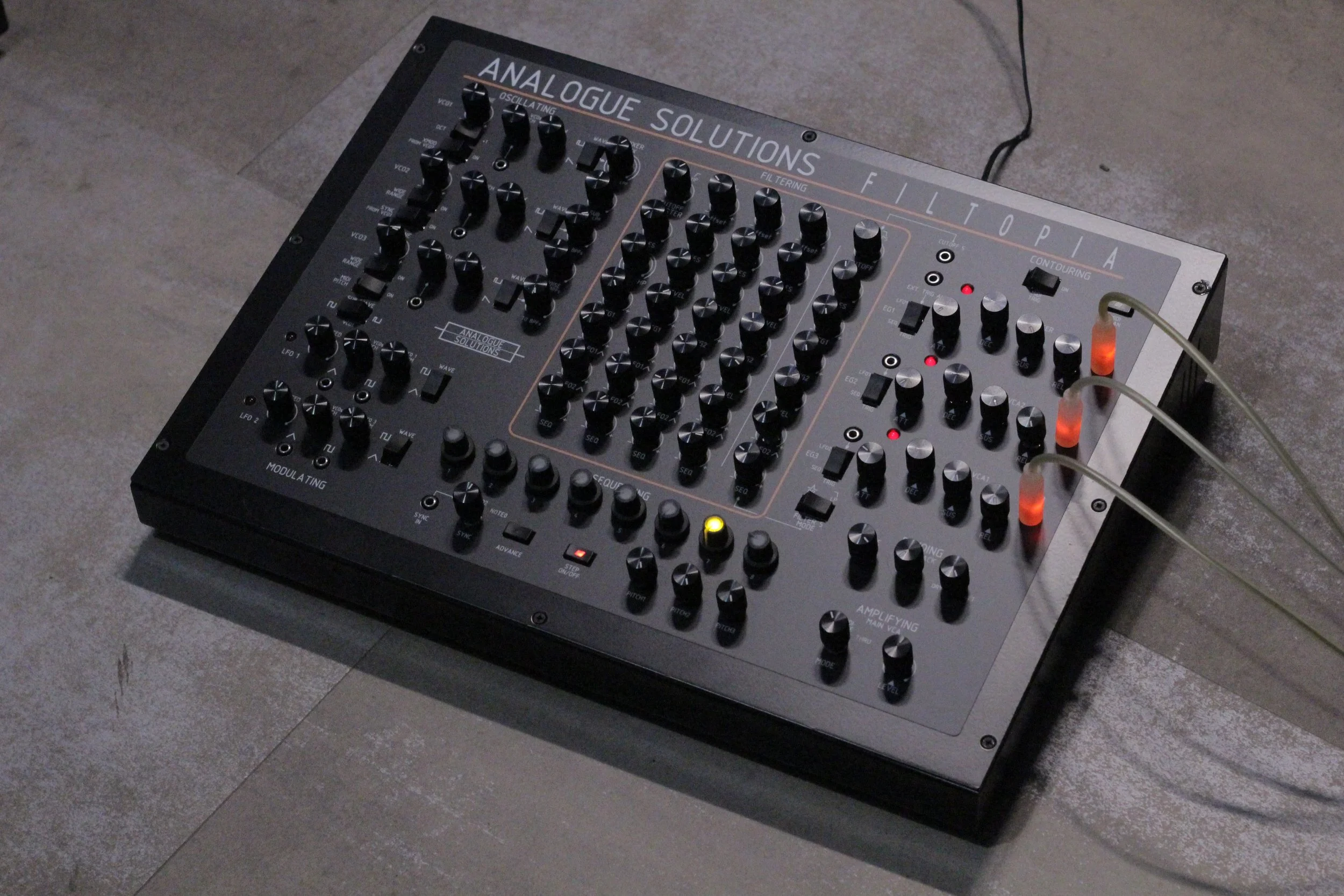

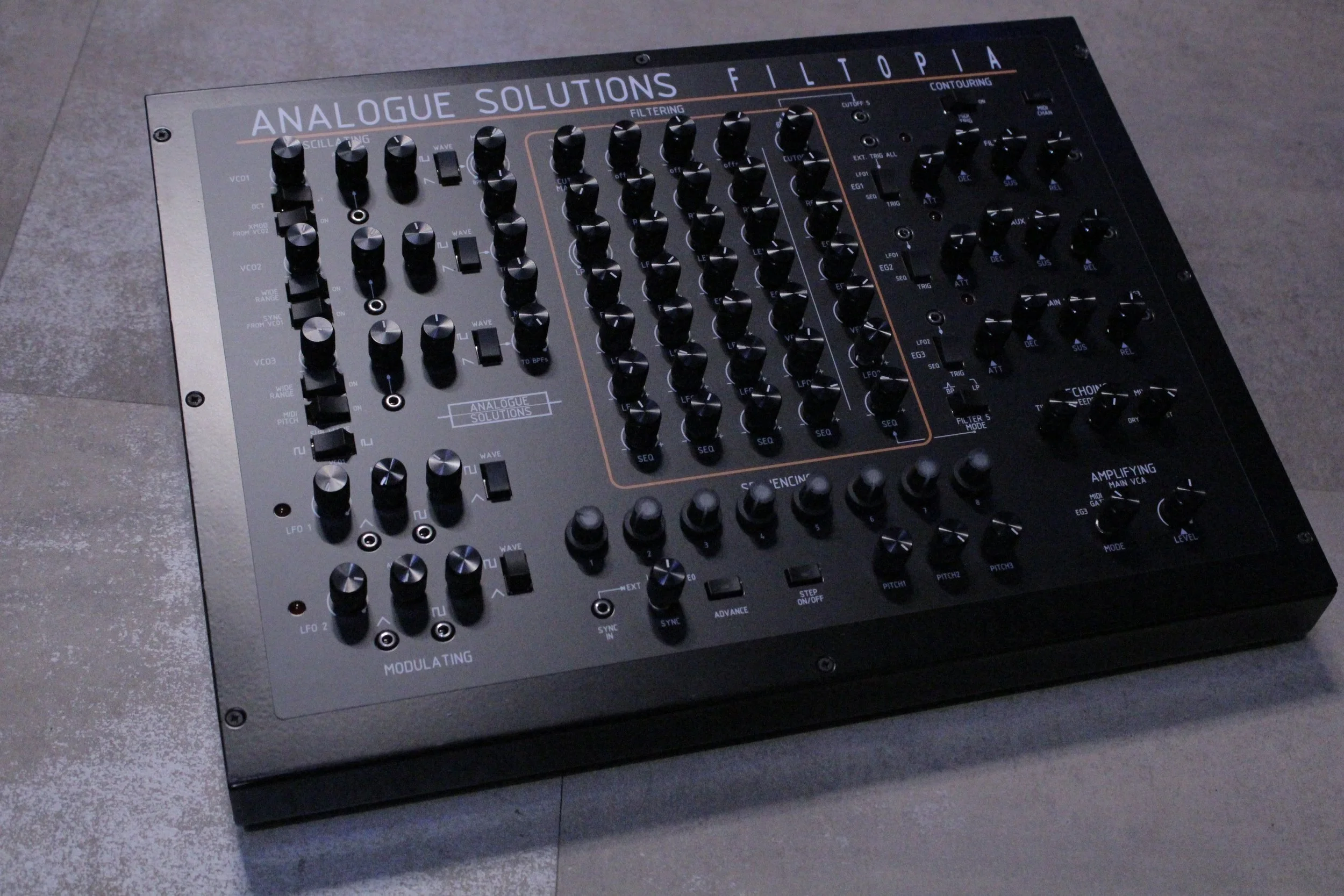

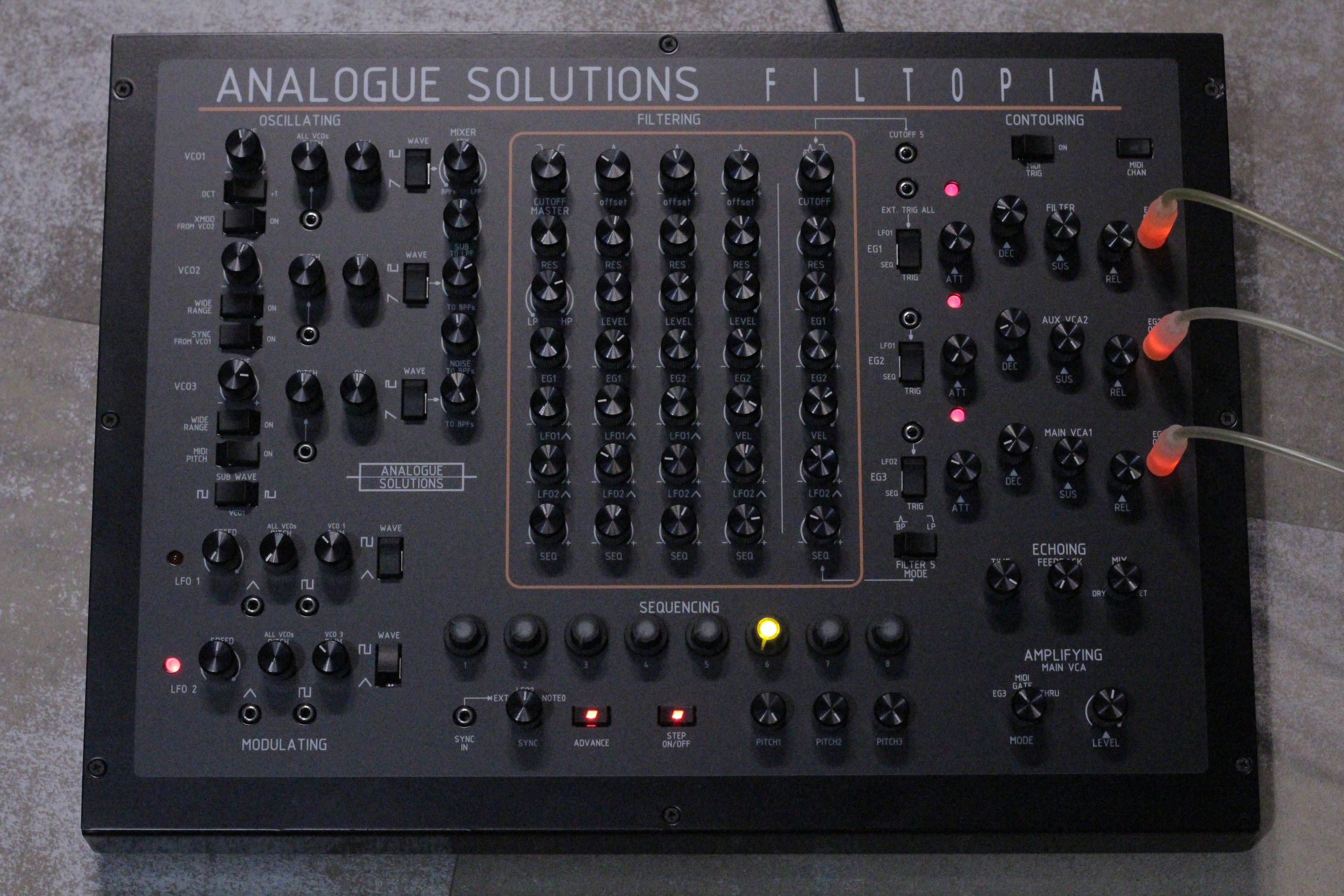

F I L T O P I A
Filtopia will be a limited edition synth - we are only building 200 units.
Stereo analogue monosynth - with a 5 Multi-Mode filter Filterbank - to give glorious and unique filter sweeps!
Filtopia!

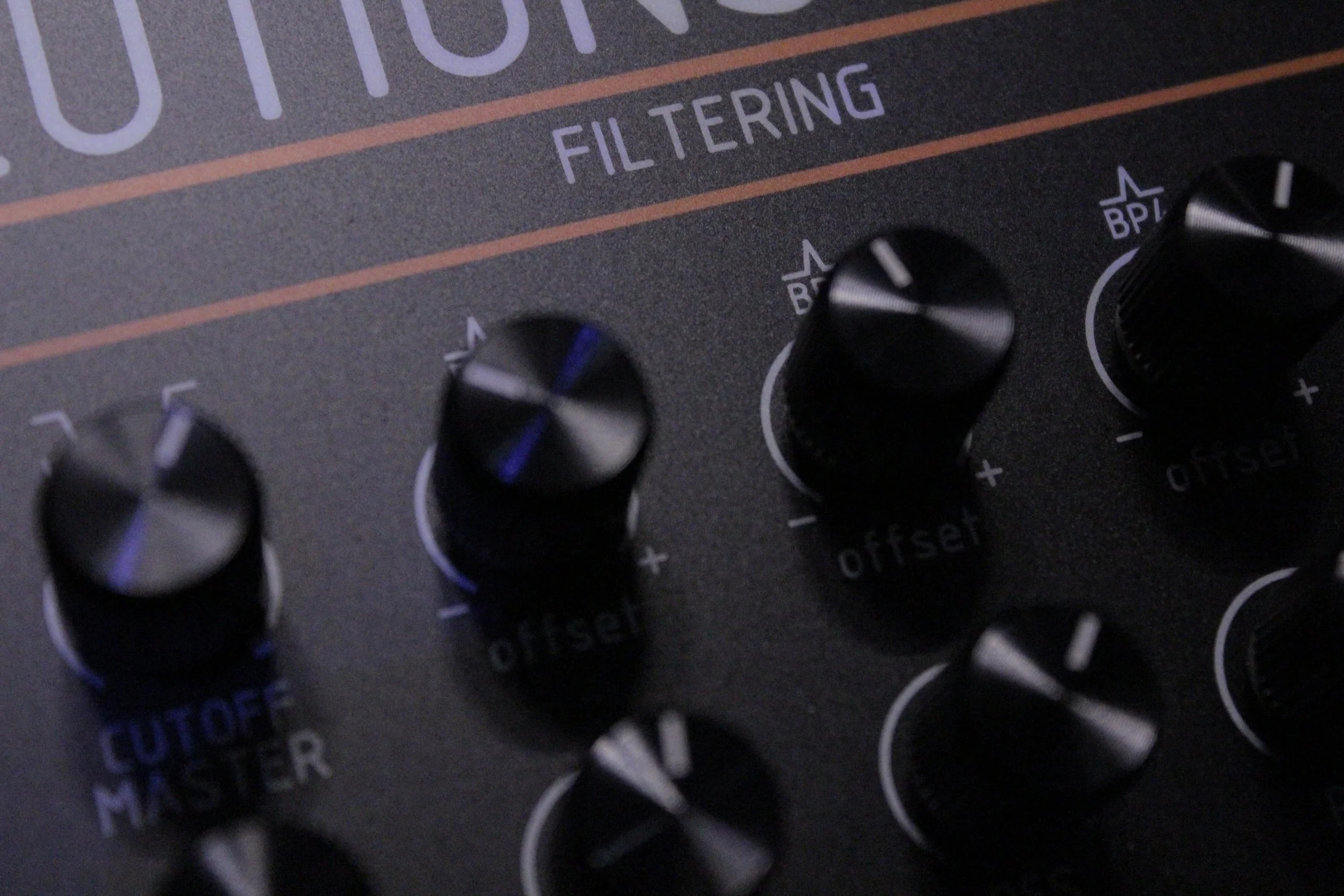

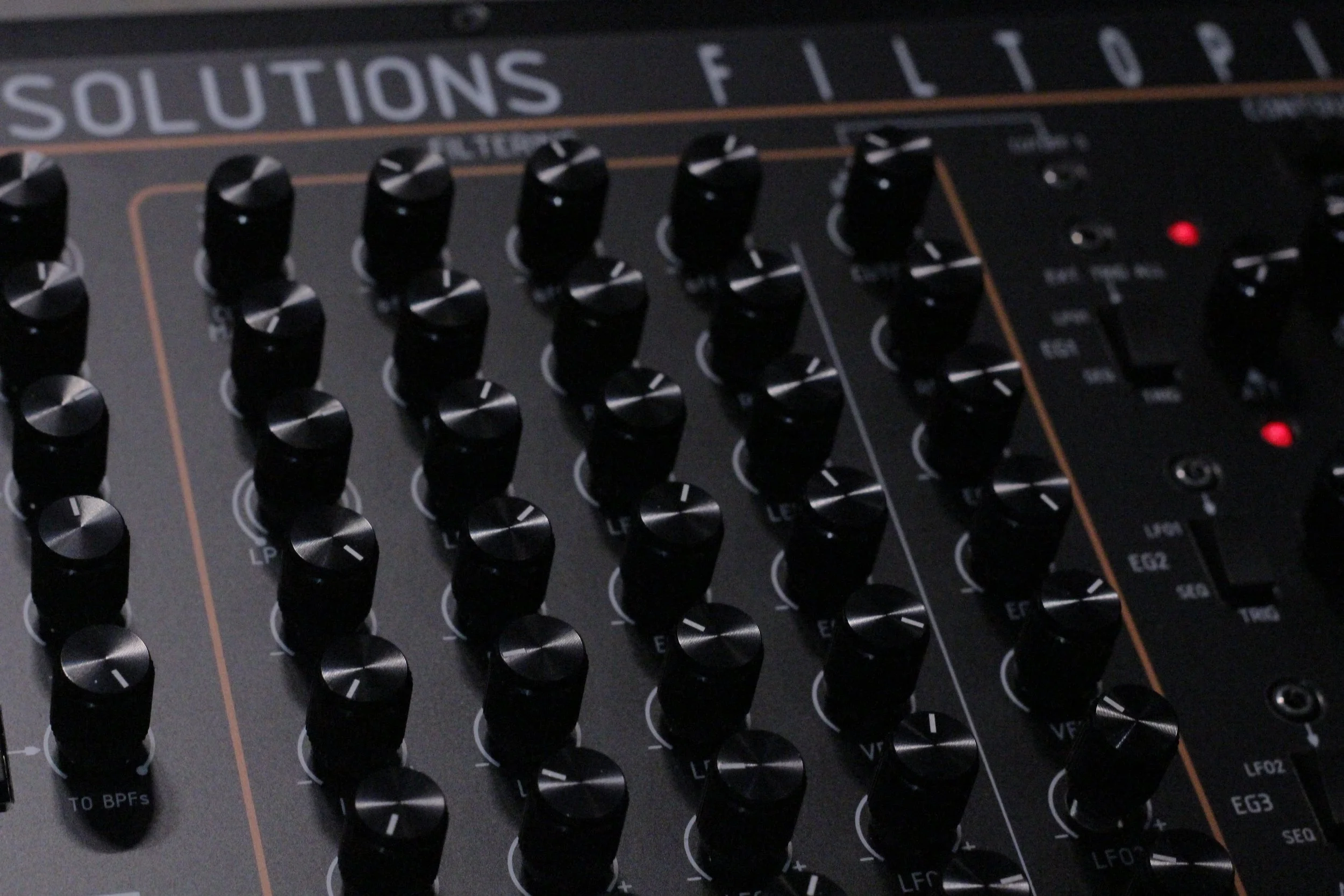

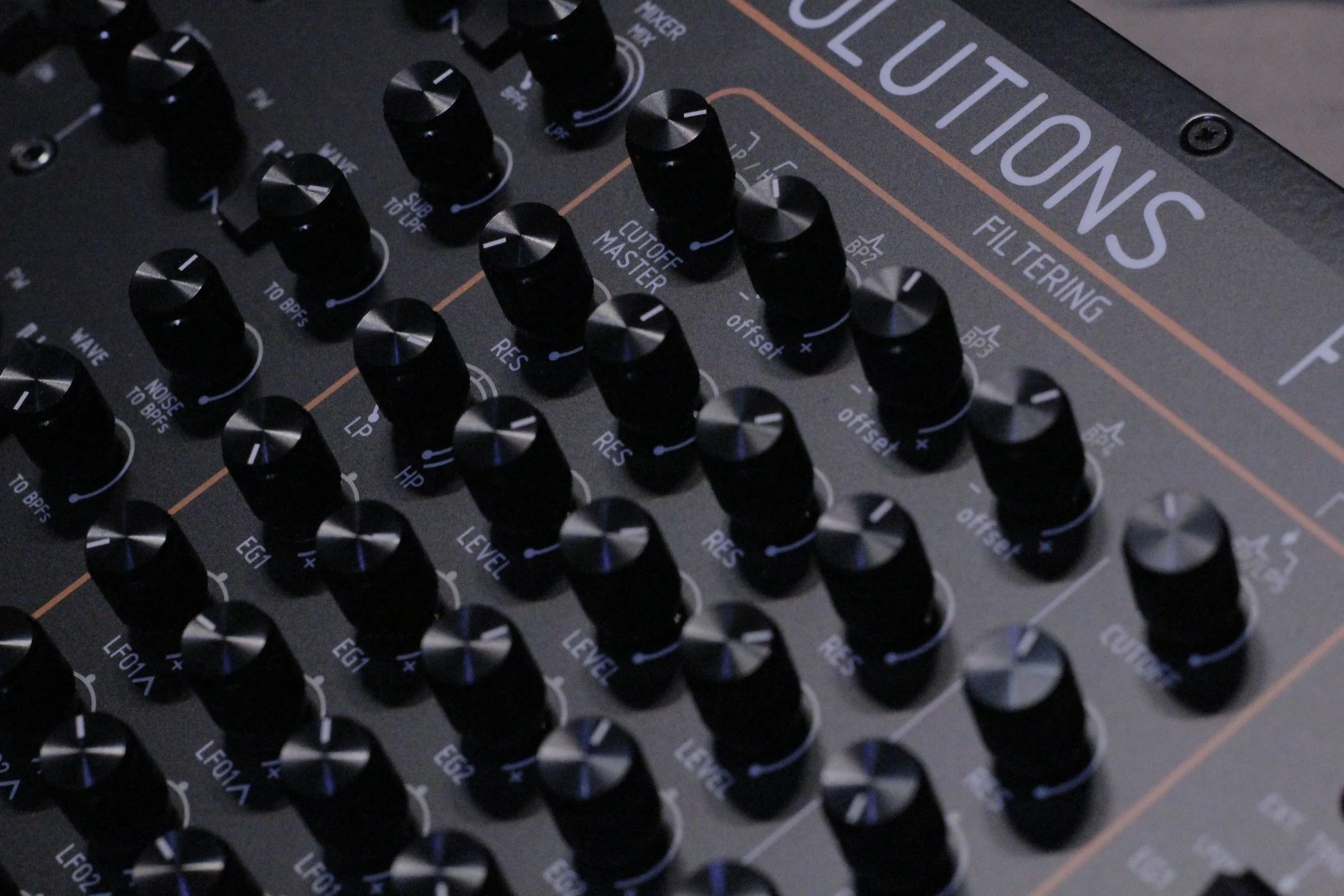

USP - The Filter Bank
Filtopia’s key USP is a bank of 5 analogue filters wired in parallel. Glorious multi-band filter sweeps are possible. With some tweaking you can also get vowel types sounds.
5 filters doesn’t mean just 5 filters, by having offset filter-cutoff frequencies, with some high resonance levels, can mimic the way the human voice works. Something that can’t be done with a single filter.

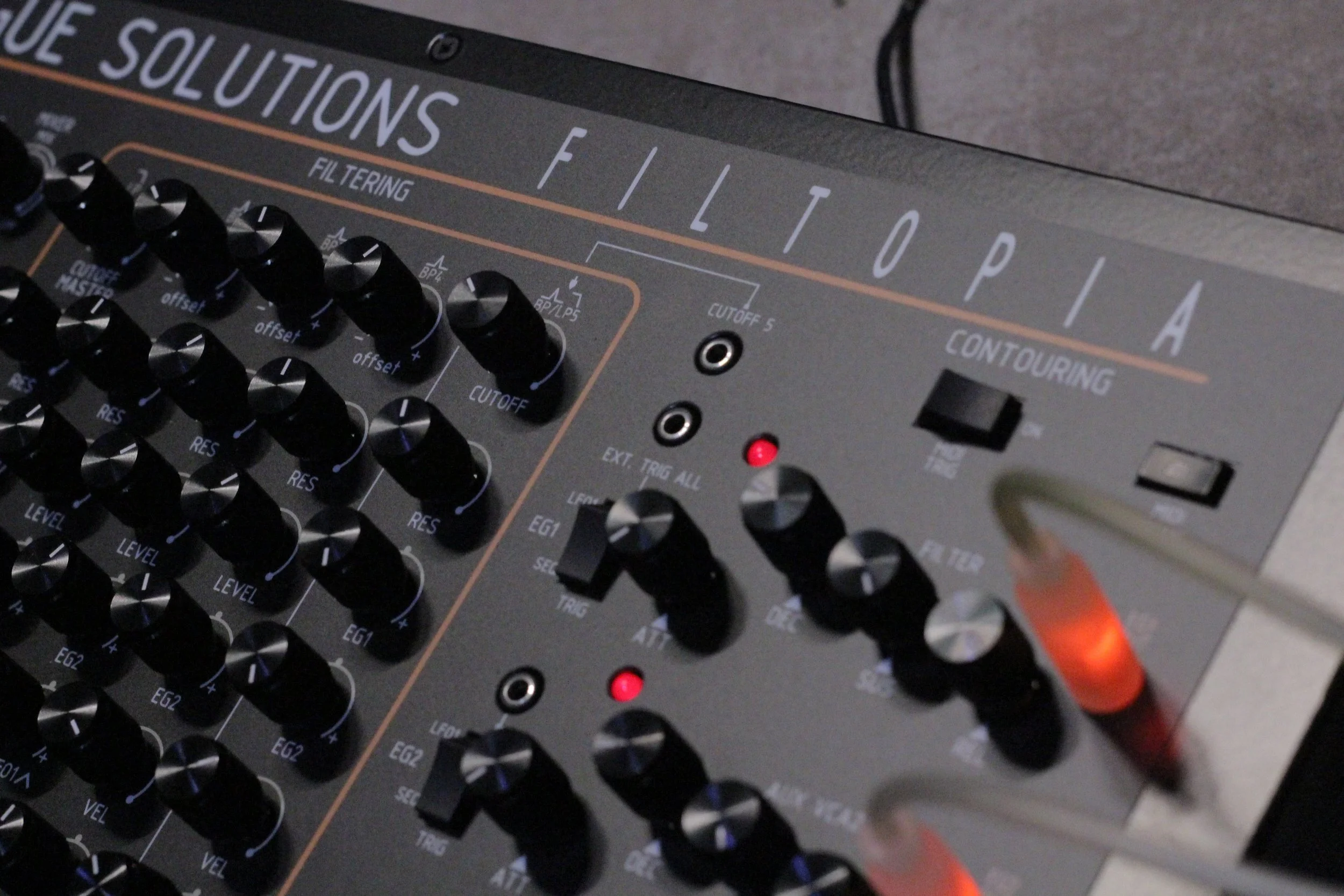

Aside from the uniqueness of a multi-channel filter bank for filtering, Filtopia is fully loaded with VCOs, LFOs, EGs, etc.

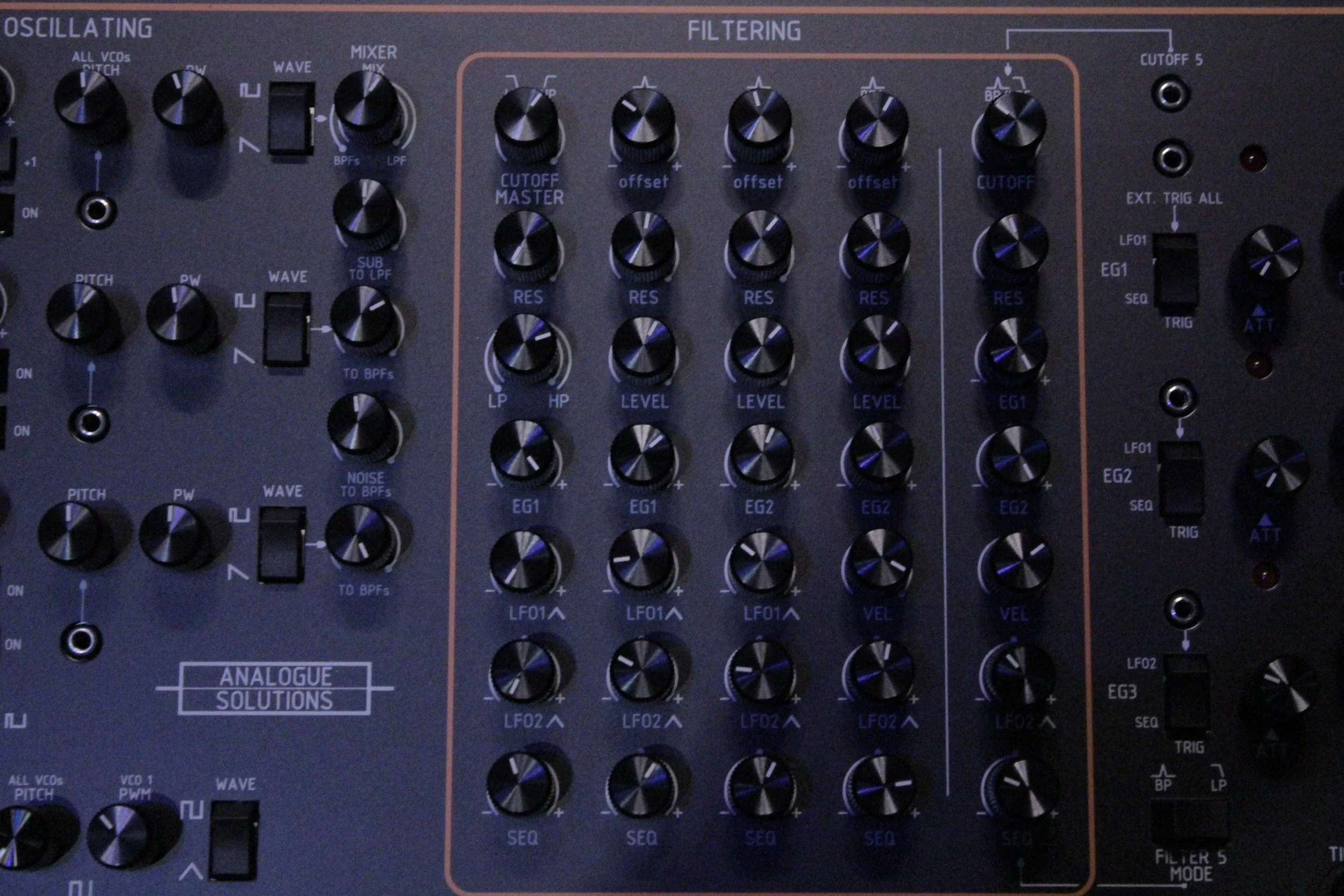

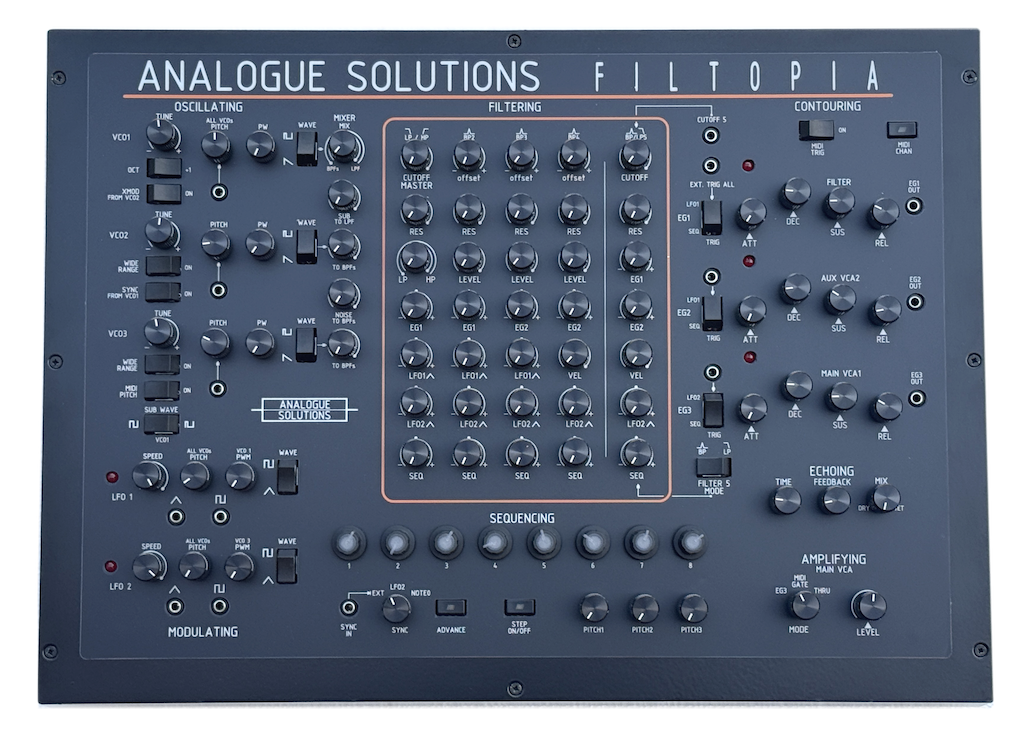

FIVE filters !!! :-
Filter 1 (far left)
This has a balance level control that fades between Low pass and High pass filters.
Filters 2, 3, 4 (the middle ones)
These are all Band pass filters.
Filter 5 (far right)
This filter is switchable between Low pass and Bank pass.
All the filters are 12dB/Octave. Their original lies heavily in the original Oberheim SEM, but developed somewhat for our own purposes and sound.
Filterbank - 5 analogue multi-mode filters - superb multi-filter sweeps, and even vowel sounds!

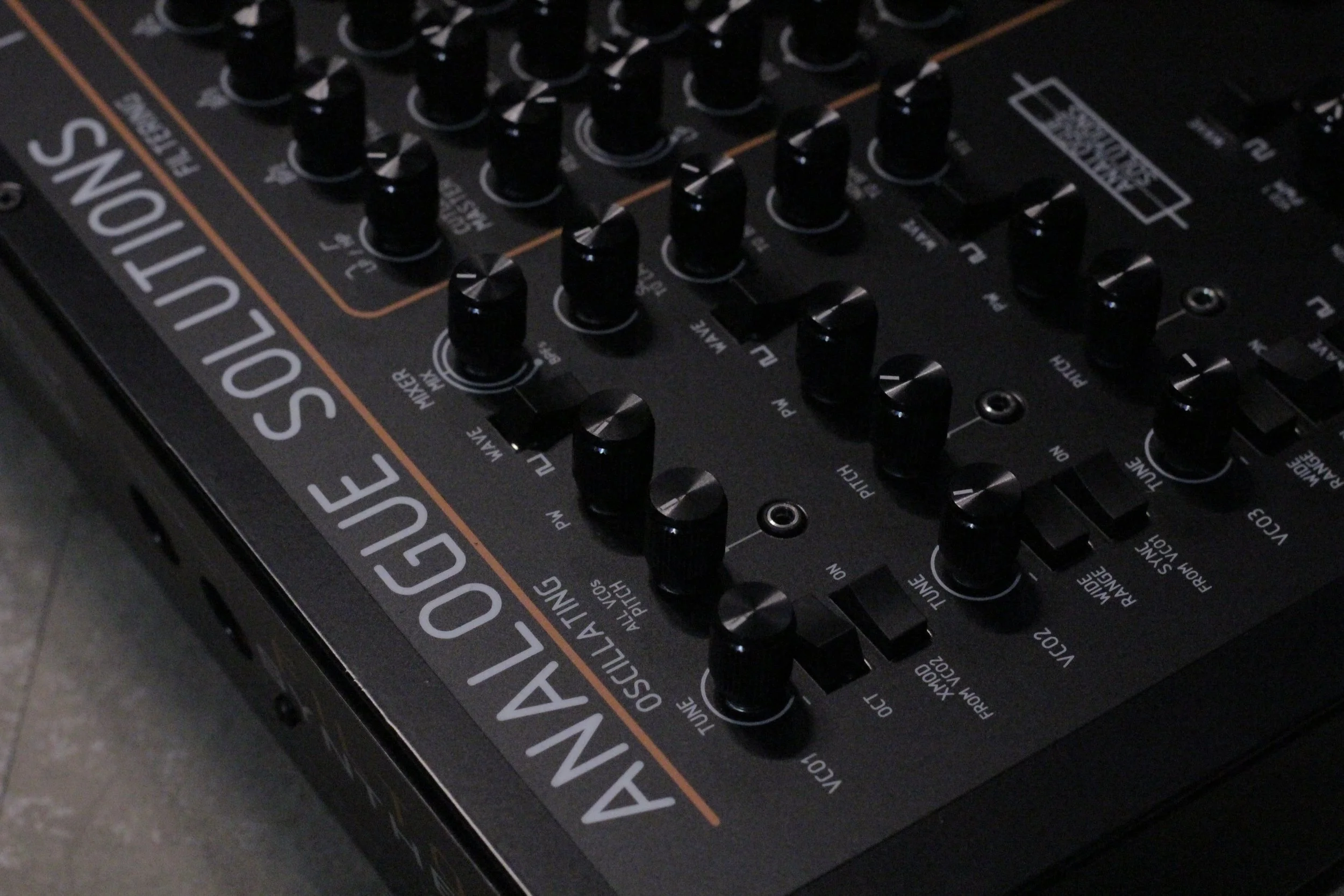

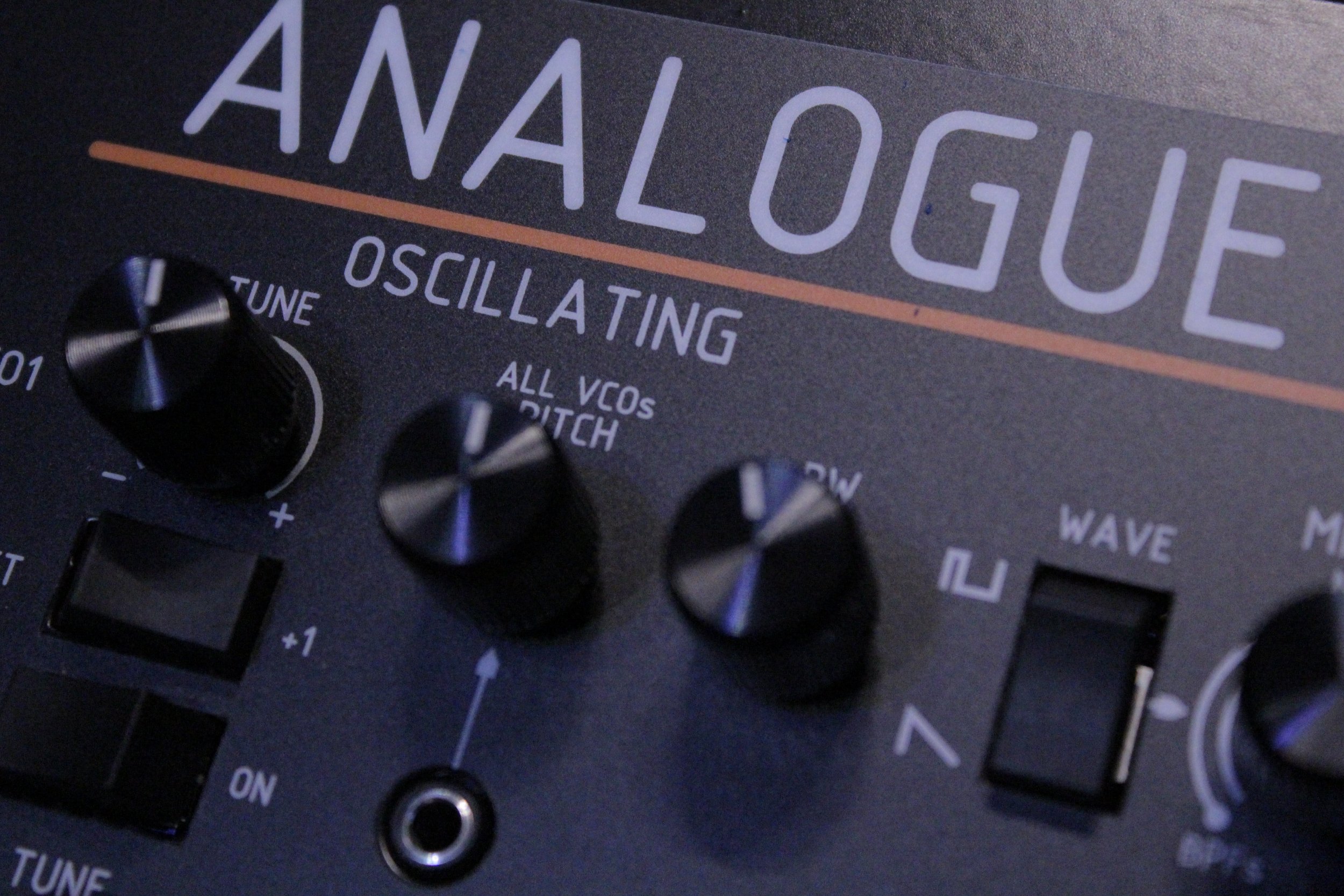

3 VCOs - can be routed to some or many of the filters as dictated by the front panel.
5 VCFs - Multi-Mode - wired in parallel.

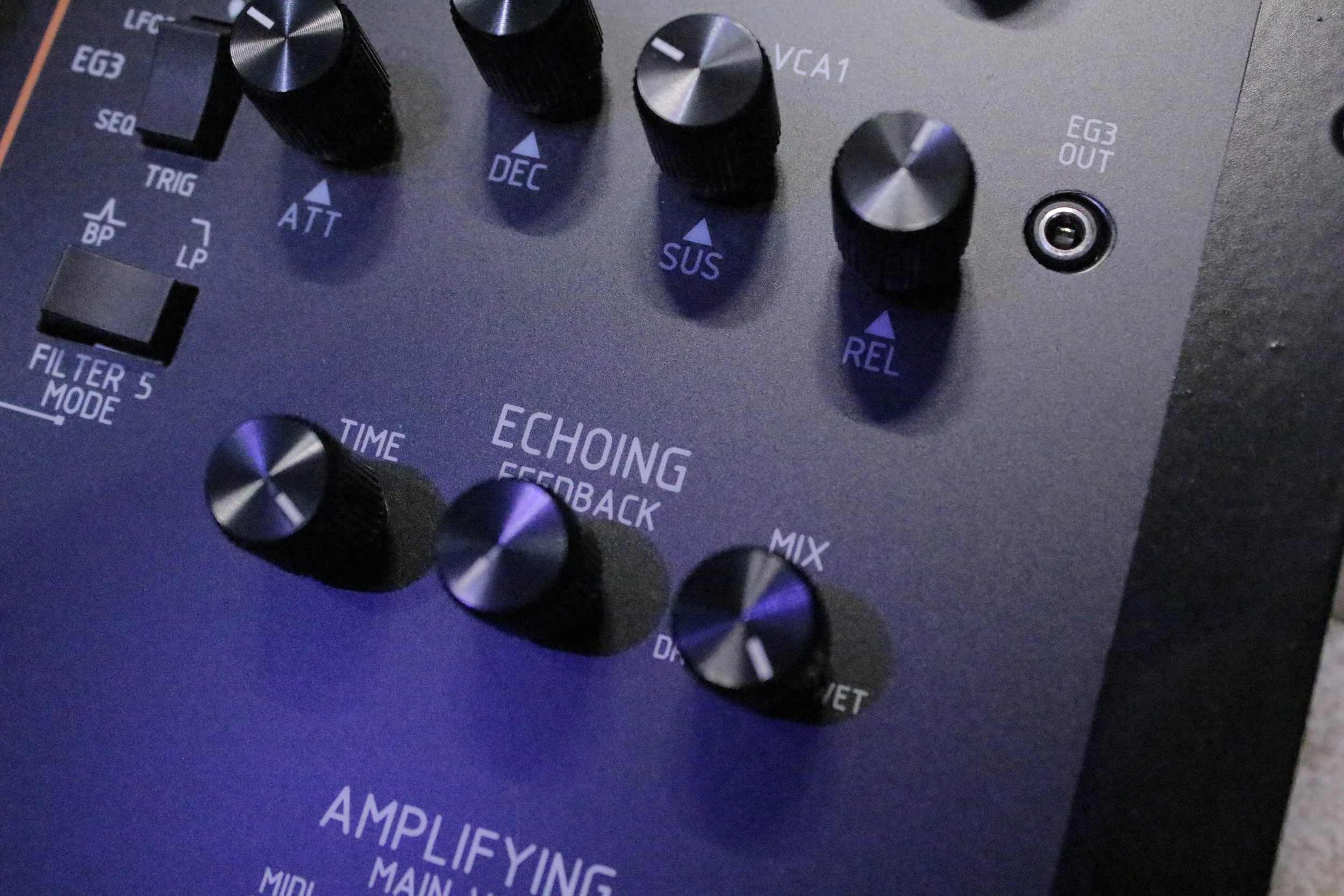

2 VCAs - one has Echo.

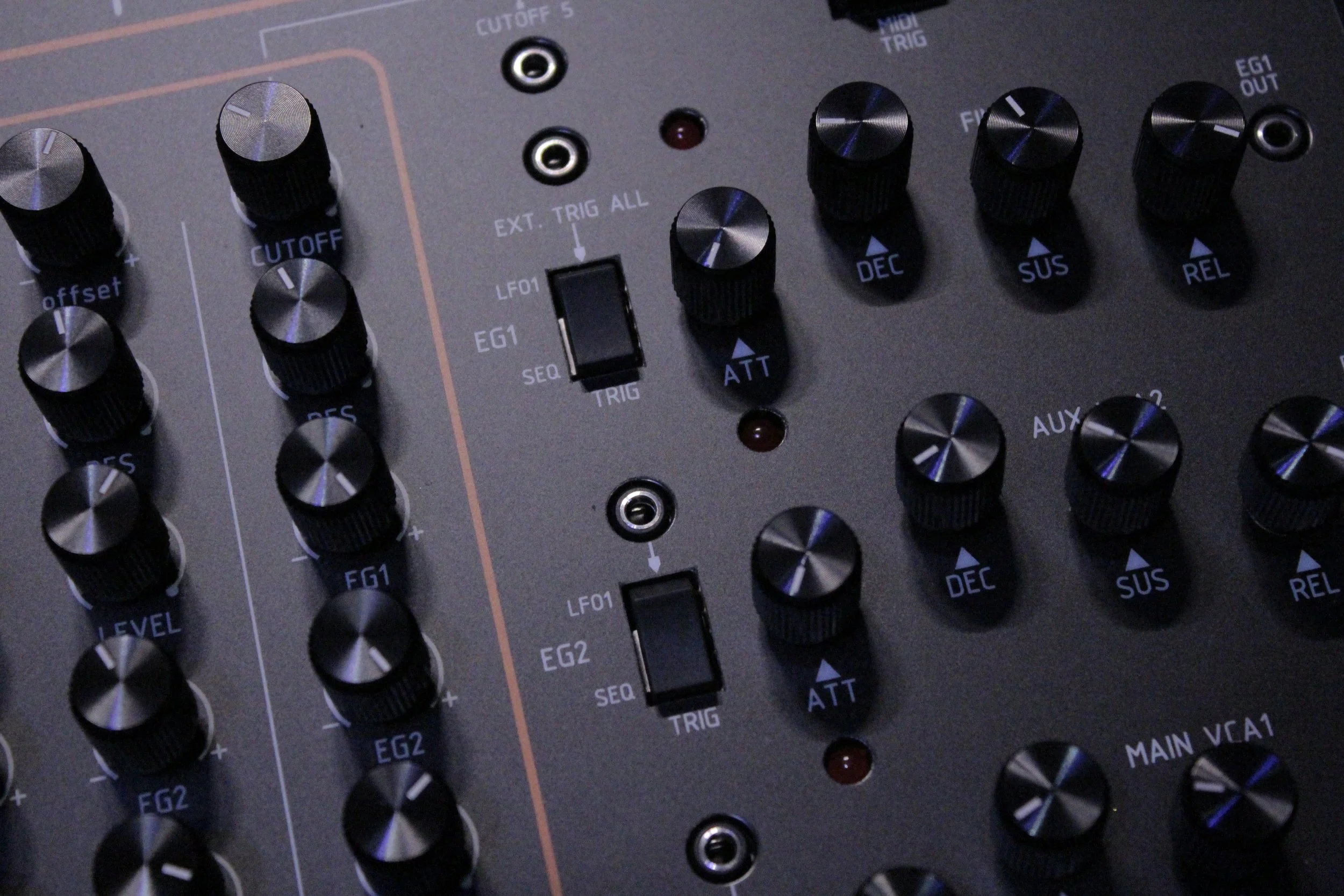

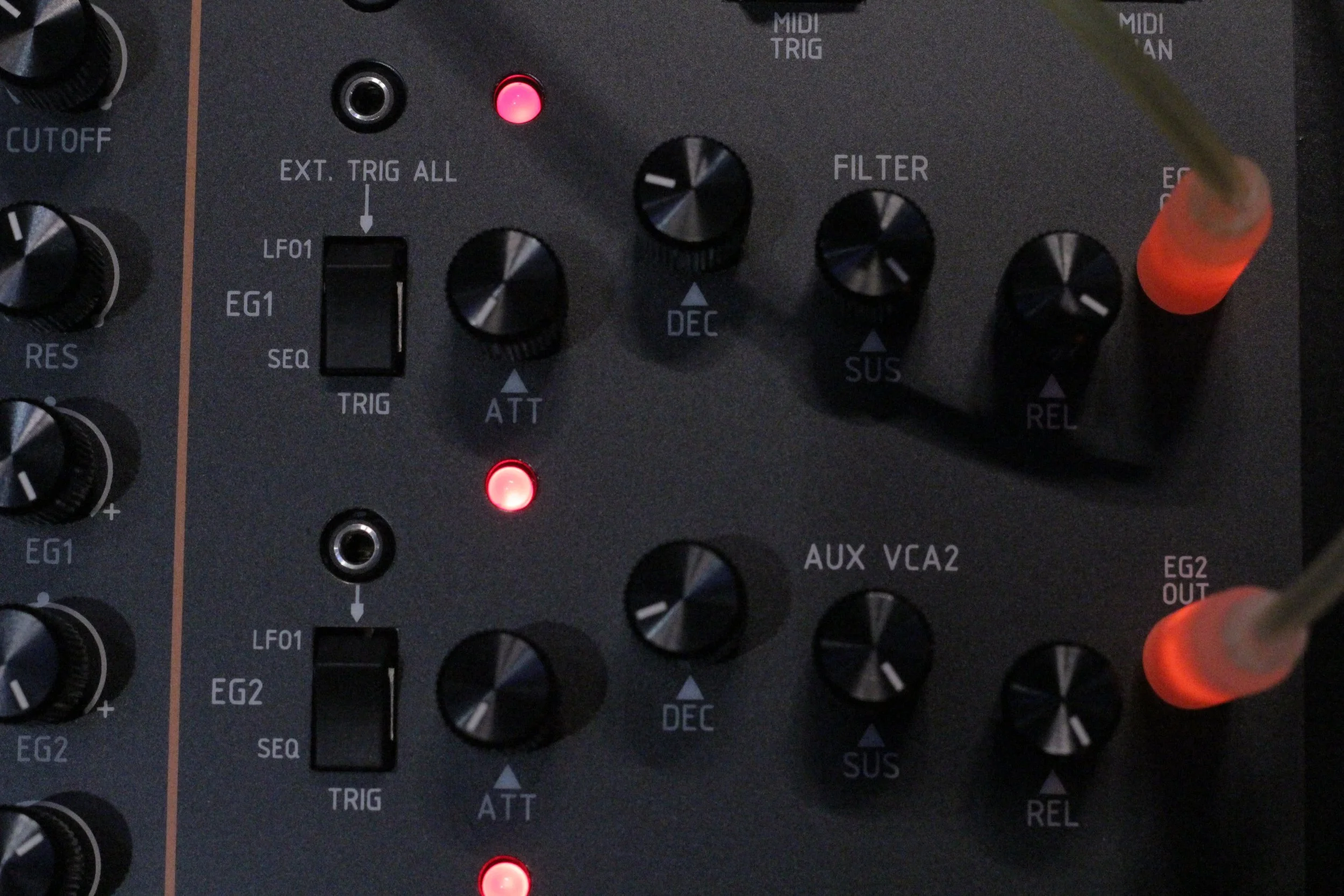

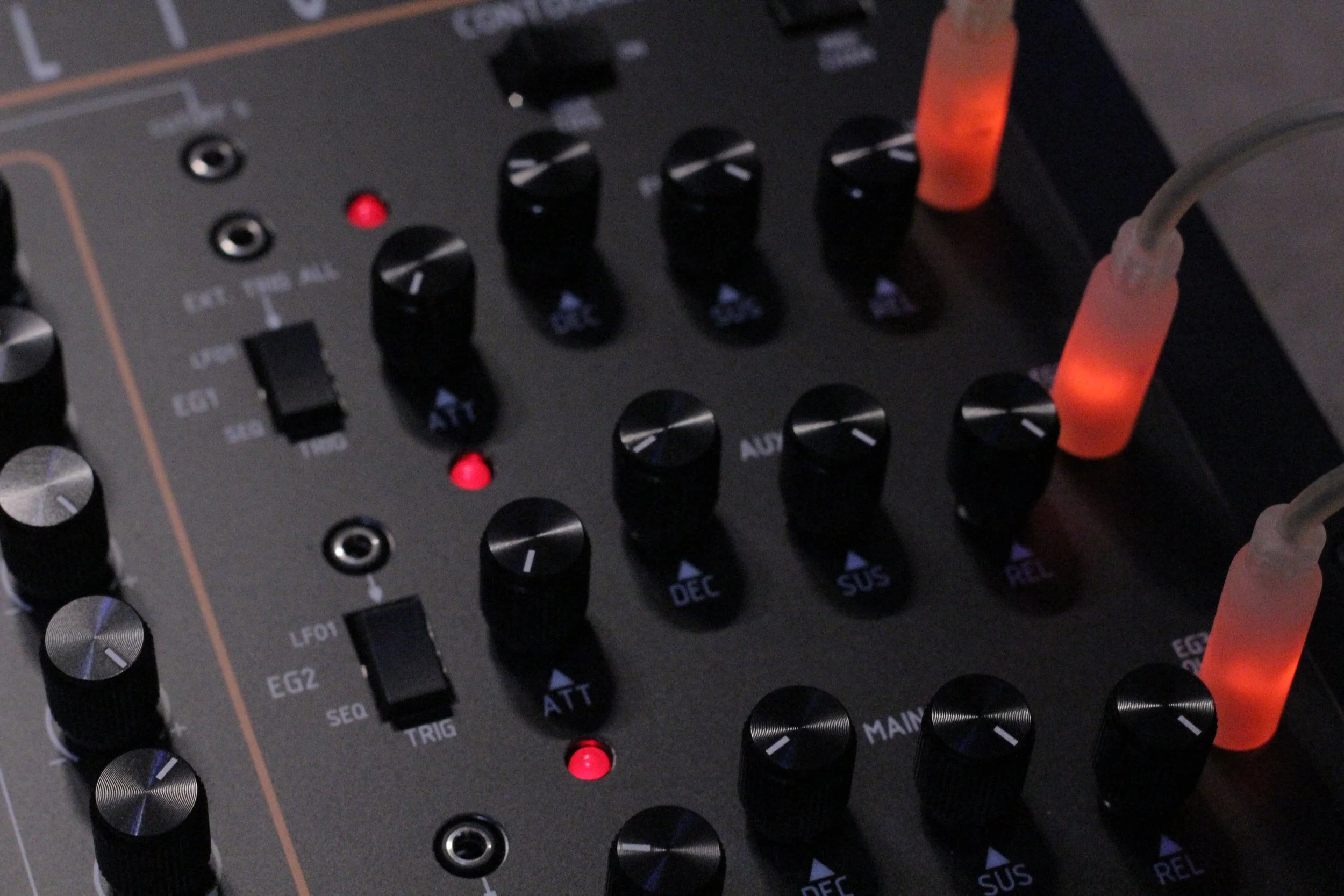

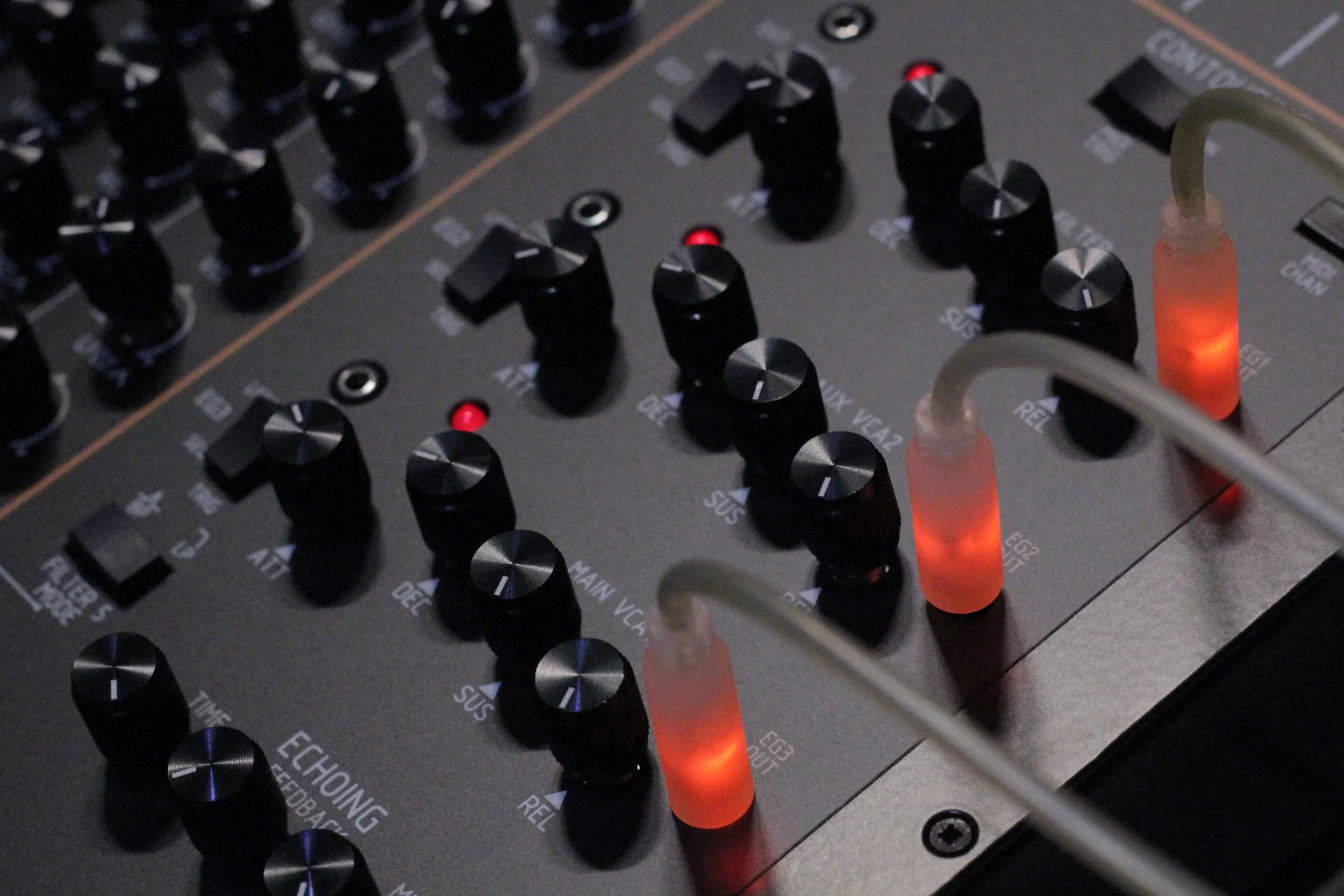

3 EGs - full ADSR.
2 LFOs.
Noise.
2 Sub-Osc.

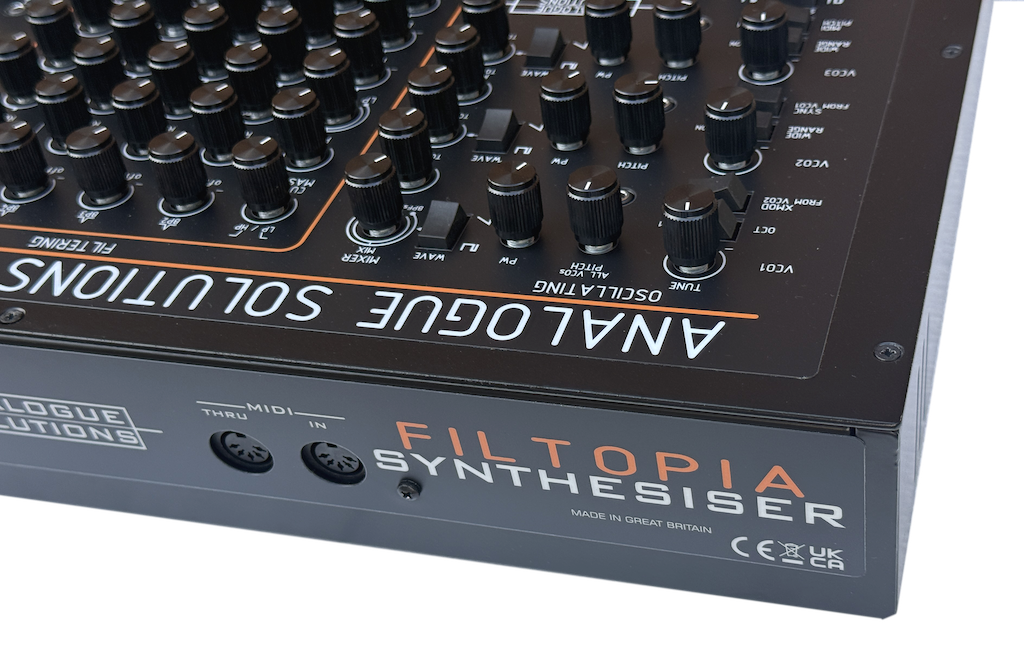

MIDI to CV.

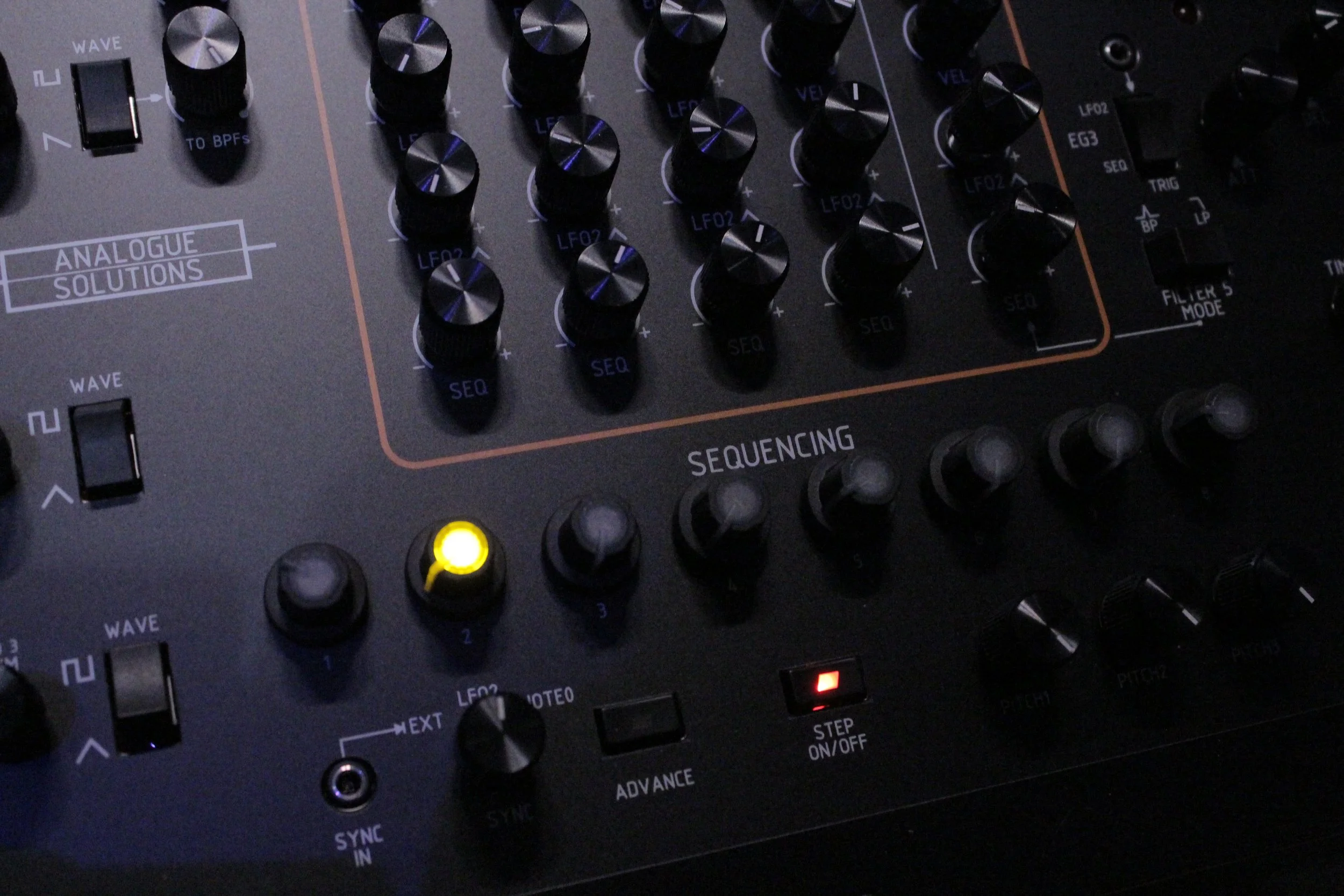

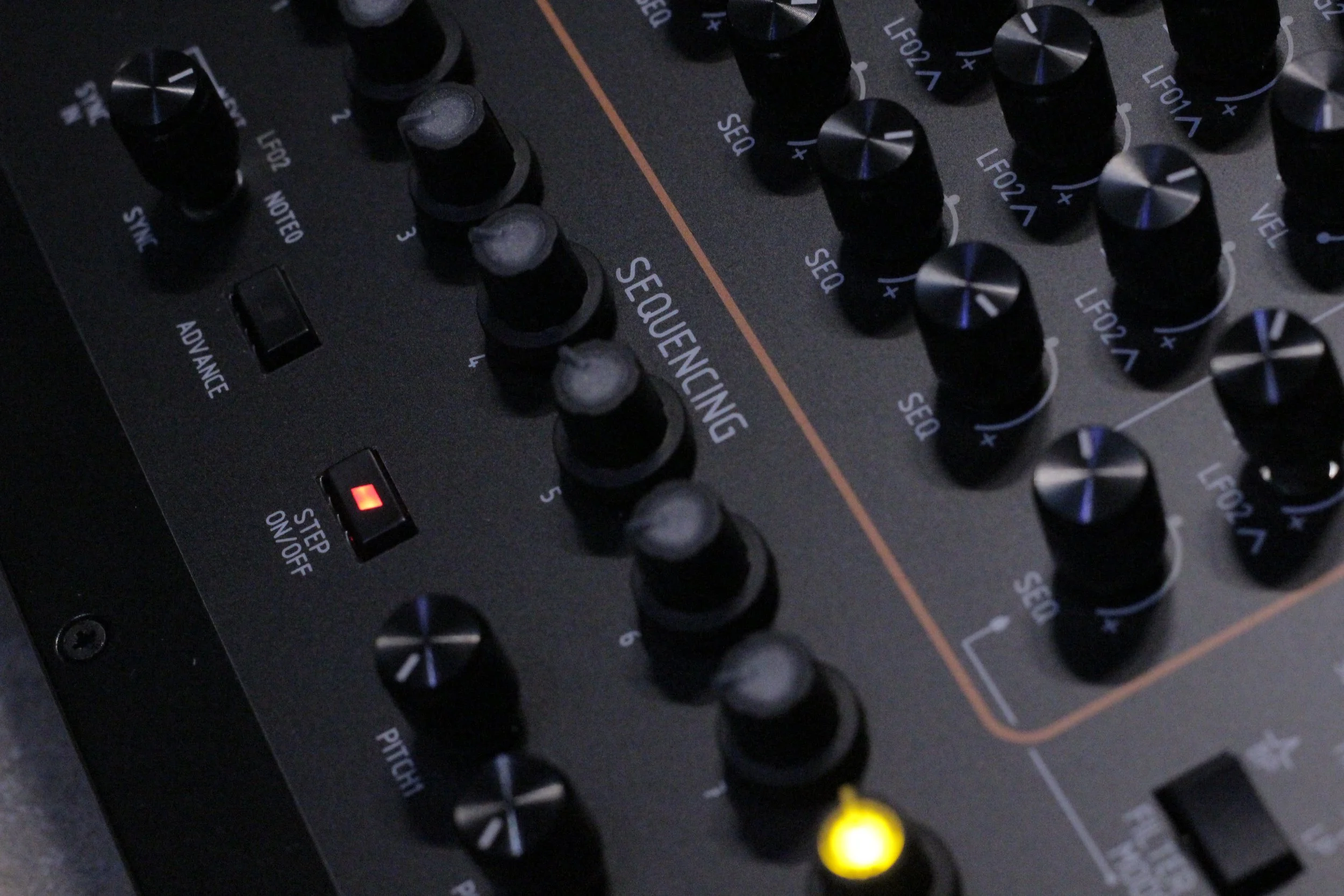

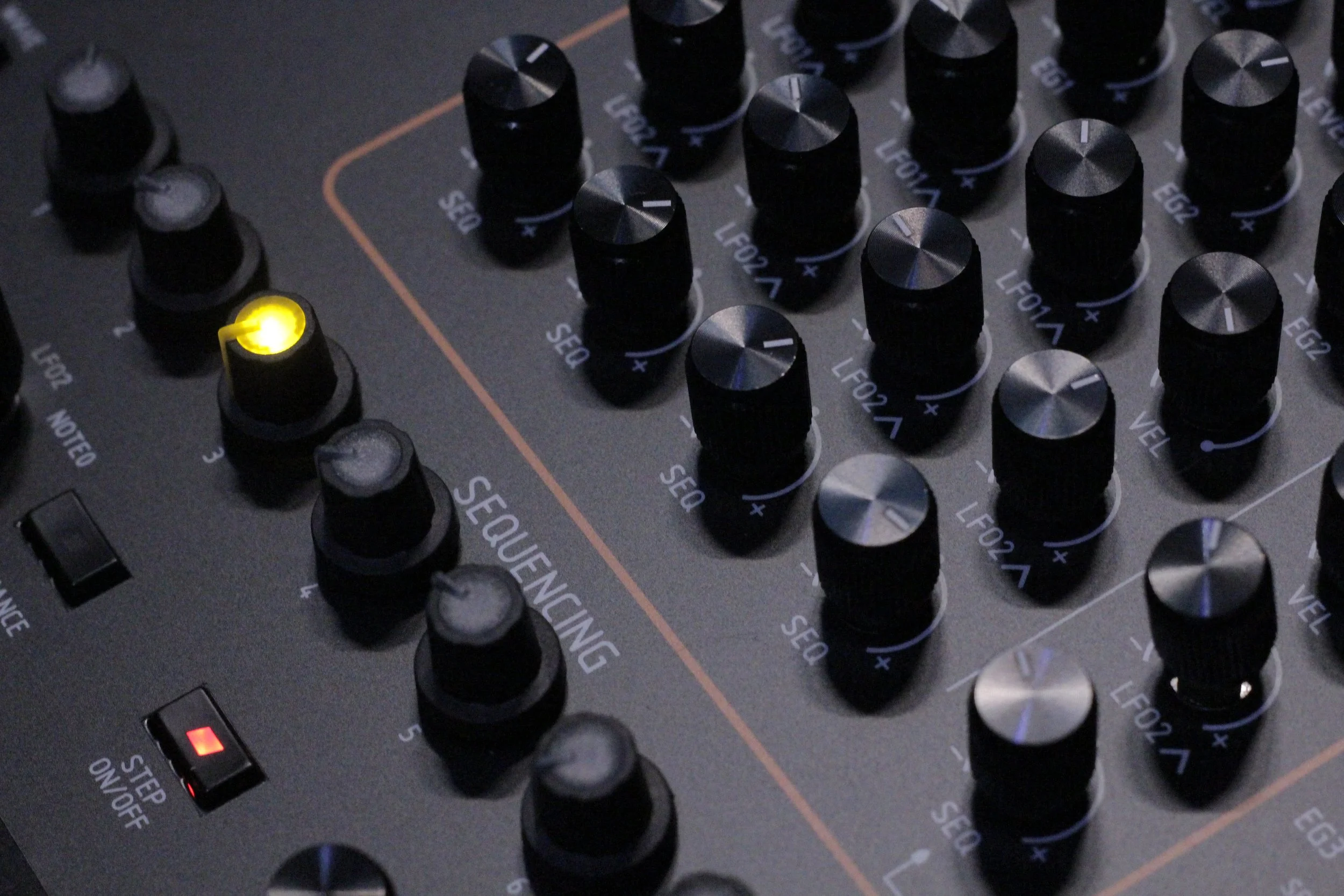

8 step CV sequencer.

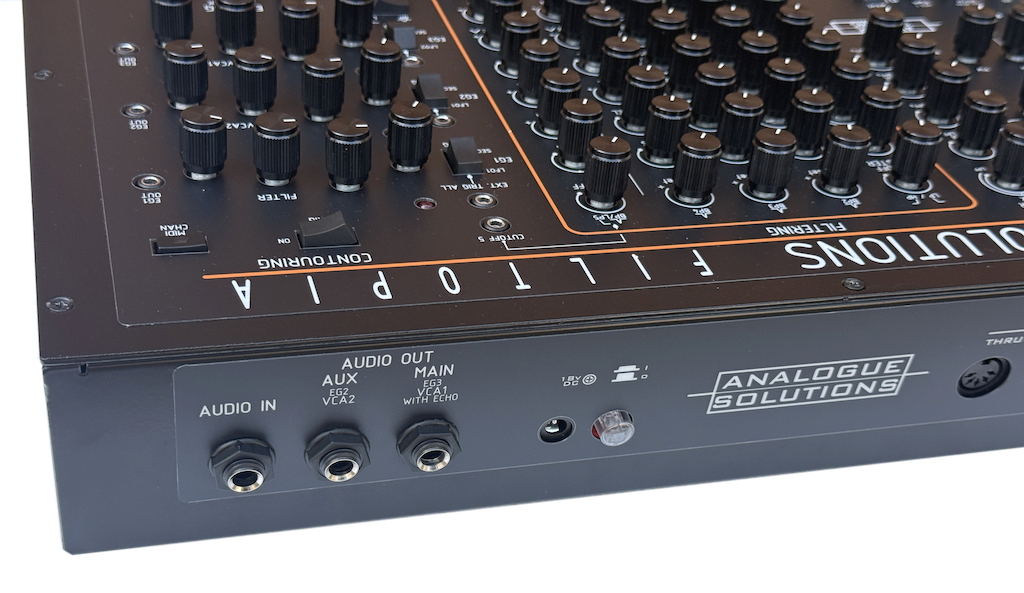

Stereo Outs.
